Test Drive: Drupal Deployment on Eucalyptus using Stackato, Amazon Route 53 and the Eucalyptus Community Cloud

Recently, I did a blog discussing how to deploy a Jenkins server using Stackato, running on Eucalyptus.  At the end of that blog, I mentioned how the Eucalyptus Community Cloud (ECC) could be used for testing out the Stackato Microcloud image on Eucalyptus.   The previous blog – I felt – was more for DevOps administrators who had access to their own on-premise Eucalyptus clouds.  The inspiration of this blog comes from the blog on ActiveBlog entitled “Deploy & Scale Drupal on Any Cloud with Stackato” to show love to Web Developers, and show the power of Amazon’s Route 53.

Test Drive Pre-Reqs

The prerequisites for this blog are the same that are mentioned in my previous blog regarding using Stackato on Eucalyptus (for the Eucalyptus pre-reqs, make sure the ECC is being used).  In addition to the prerequisites mentioned above, the following is needed:

After the prerequisites have been met, its time to setup the Drupal environment.

Test Drive Engage!

Since the ECC is being used, there is no need to worry about bundling, uploading and registering the Stackato image.  The Stackato image used for this blog is as follows:

IMAGE emi-859B3D5C stackato_v2.6.6/stackato-cloudinit.manifest.xml
150820662310 available public x86_64 machine eki-6FBE3D2D eri-67463B77 instance-store

Next, lets make sure the user has an elastic IP that will be used in AWS Route 53, and a security group to allow proper network traffic to the instance.  Do the following:

  1. Make sure the user credentials are sourced correctly, and euca2ools is installed correctly.
  2. Grab an elastic IP using euca-allocate-address (in this example 173.205.188.105 was allocated):

    # euca-allocate-address
    ADDRESS 173.205.188.105

  3. If the user already doesn’t have a keypair, create a keypair for the user by using euca-create-keypair, and make sure the permission of the file is 0600:

    # euca-create-keypair hspencer-stackato > hspencer-stackato.priv
    # chmod 0600 hspencer-stackato.priv

  4. Create a security group for the instance to use:

    # euca-create-group stackato-test -d "Test Security Group for Stackato PaaS"
    GROUP stackato-test Test Security Group for Stackato PaaS

  5. Authorize ping, ssh, http, and https ports:

    # euca-authorize -P icmp -t -1:-1 -s 0.0.0.0/0 stackato-test
    GROUP stackato-test
    PERMISSION stackato-test ALLOWS icmp -1 -1 FROM CIDR 0.0.0.0/0

    # euca-authorize -P tcp -p 22 -s 0.0.0.0/0 stackato-test
    GROUP stackato-test
    PERMISSION stackato-test ALLOWS tcp 22 22 FROM CIDR 0.0.0.0/0

    # euca-authorize -P tcp -p 80 -s 0.0.0.0/0 stackato-test
    GROUP stackato-test
    PERMISSION stackato-test ALLOWS tcp 80 80 FROM CIDR 0.0.0.0/0

    # euca-authorize -P tcp -p 443 -s 0.0.0.0/0 stackato-test
    GROUP stackato-test
    PERMISSION stackato-test ALLOWS tcp 443 443 FROM CIDR 0.0.0.0/0

  6. Now, launch the instance, specifying the keypair name to use, and a VM type.  On the ECC, only m1.xlarge and c1.xlarge meet the requirements of launching the Stackato image:

    # euca-run-instances -k hspencer-stackato -t c1.xlarge emi-859B3D5C -g stackato-test
    RESERVATION r-66EE4030 628376682871 stackato-test
    INSTANCE i-E85843C4 emi-859B3D5C euca-0-0-0-0.eucalyptus.ecc.eucalyptus.com euca-0-0-0-0.eucalyptus.internal
     pending hspencer-stackato 0 c1.xlarge 2013-02-24T19:40:35.516Z partner01 eki-6FBE3D2D
     eri-67463B77 monitoring-disabled 0.0.0.0 0.0.0.0 instance-store

  7. Once the instance gets to a running state, associate the elastic IP that the user owns to the instance:

    # euca-describe-instances
    RESERVATION r-66EE4030 628376682871 stackato-test
    INSTANCE i-E85843C4 emi-859B3D5C euca-173-205-188-106.eucalyptus.ecc.eucalyptus.com
     euca-10-9-190-24.eucalyptus.internal running hspencer-stackato 0 c1.xlarge
    2013-02-24T19:40:35.516Z partner01 eki-6FBE3D2D eri-67463B77 monitoring-disabled
     173.205.188.10 10.9.190.24 instance-store

    # euca-associate-address -i i-E85843C4 173.205.188.105
    ADDRESS 173.205.188.105 i-E85843C4

    # euca-describe-instances
    RESERVATION r-66EE4030 628376682871 stackato-test
    INSTANCE i-E85843C4 emi-859B3D5C euca-173-205-188-105.eucalyptus.ecc.eucalyptus.com
     euca-10-9-190-24.eucalyptus.internal running hspencer-stackato 0 c1.xlarge 2013-02-24T19:40:35.516Z
     partner01 eki-6FBE3D2D eri-67463B77 monitoring-disabled 173.205.188.10 10.9.190.24 instance-store

  8. Log into the AWS management console,  select Route 53, and setup the A and CNAME records in your domain as mentioned here under the Stackato Documentation regarding detailed DNS configuration.  In this example, the DNS name associated with the elastic IP 173.205.188.105 is stackato-dev.mindspew-age.com.
  9. Next ssh into the instance, and proceed to follow the steps for setting up the Stackato instance that is mentioned in my previous blog under the section Configuration of the Stackato Instance.  Make sure the DNS name setup in AWS Route 53 is used with “kato rename public-DNS-name” and “kato setup core api.public-DNS-name” configuration steps.
  10. After the instance is configured, just open up the browser and go to the DNS name set up for the Stackato instance in AWS Route 53, as mentioned in the Stackato Documentation regarding configuration via the Management Console.
  11. Once logged into the Stackato Management Console, select “App Store” in the lefthand menu and select “Drupal” to install

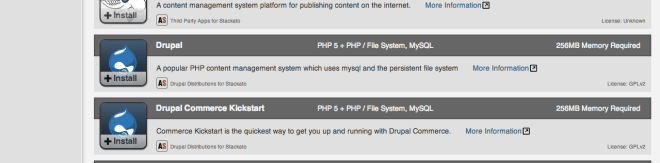

    App Store - Drupal Application

    App Store – Drupal Application



  12. After Drupal has installed, start the application.  Once it has started successfully, select the URL that shows up in the right-hand menu box.  The Drupal log-in page will appear in your browser

    Drupal Landing Page

    Drupal Landing Page

Thats it!  Now Drupal is ready for any web developer to test out on the ECC.  If there is any questions/comments/suggestions, please feel free to leave comments.  Enjoy!

Jenkins, Stackato, Cloud-Init and Eucalyptus == Potent Combination for an On-Premise Continuous Integration Environment

The Ingredients

Jenkins

An extendable open source continuous integration server.

Stackato

The Enterprise Private PaaS that makes it easy to deploy, manage, and monitor applications on any cloud.

Cloud-init

The Ubuntu package that handles early initialization of a cloud instance. It is installed in the Ubuntu Cloud Images and also in the official Ubuntu images available on EC2.

Eucalyptus

Allows you to build production-ready, AWS-compatible private and hybrid clouds by leveraging your existing virtualized infrastructure to create on-demand cloud resource pools.

What happens when you combine all three of these tools?  A potent combination for continuous integration on a easy-to-configure PaaS and an on-premise, AWS-compatible IaaS.  With this combination, developers can take advantage of easy configuration that Stackato brings to the table, running on top of Eucalyptus – bringing an AWS-like cloud environment into your datacenter.

This blog entry will discuss the steps that I took to get Jenkins installed on a Stackato instance store-backed instance running on Eucalyptus.  But before I get started, I would like to thank the folks from ActiveState for all their guidance.  Their support staff is really top notch, and very helpful.  Check them out in #stackato on freenode.net.  They can also be checked out on Twitter at @ActiveState. Now on to the dirty work…..

The Recipe for Success

The Stackato Microcloud Image and Cloud-Init

To begin, the following is needed:

After downloading the Stackato VM for KVM and unzipping the file, we will need to pull out the root file system, the kernel and ramdisk.  These will be uploaded, bundled and registered as the EMI, EKI, and ERI.  To extract the root filesystem, do the following:

  1. Use parted to locate the root filesystem as follows:
    # parted stackato-img-kvm-v2.6.6.img
    GNU Parted 2.1
    Using /root/images/Stackato-VM/stackato-img-kvm-v2.6.6.img
    Welcome to GNU Parted! Type 'help' to view a list of commands.
    (parted) U
    Unit? [compact]? b
    (parted) p
    Model: (file)
    Disk /root/images/Stackato-VM/stackato-img-kvm-v2.6.6.img: 10737418240B
    Sector size (logical/physical): 512B/512B
    Partition Table: msdos

    Number Start End Size Type File system Flags
    1 1048576B 200278015B 199229440B primary ext3 boot
    3 200278016B 1237319679B 1037041664B primary linux-swap(v1)
    2 1237319680B 10736369663B 9499049984B primary ext4

    (parted) quit
  2. In this example, the root filesystem is partition 2.  The value for “Start” and “Size” will need to be used.  Next, run dd to extract the root filesystem:
    dd if=stackato-img-kvm-v2.6.6.img of=stackato-rootfs.img
     bs=1 skip=1237319680 count=9499049984

  3. Once it has completed, mount  stackato-rootfs.img to the loopback device:
    mount -o loop stackato-rootfs.img /mnt/
  4. Copy out initrd.img-3.2.0-27-virtual  and vmlinuz-3.2.0-27-virtual from /mnt/boot.
  5. In /mnt/etc/fstab, replace the UUID entry with LABEL.  The LABEL will look simliar to the following:
    LABEL=cloudimg-rootfs    /               ext4   defaults     1       1
  6. Chroot to /mnt – there may be a need to do a mount -o bind for sys, dev, and proc.
  7. Run “dpkg-reconfigure cloud-init”, and make sure that the EC2 Data Source is selected.
  8. Unmount stackato-rootfs.img (if sys, dev, and proc were mounted, unmount them before unmounting stackato-rootfs.img).  After it has been unmounted, run tune2fs to change the label of the image:
    tune2fs -L cloudimg-rootfs stackato-rootfs.img

After following these steps, the following should be available:

  • initrd.img-3.2.0-27-virtual – to be bundled, uploaded and registered as the ERI
  • vmlinuz-3.2.0-27-virtual – to be bundled, uploaded and registered as the EKI
  • stackato-rootfs.img – to be bundled, uploaded and registered as the EMI

Go through the steps of bundling, uploading and registering the ERI, EKI, and EMI.  For additional information, please refer to the Add an Image section of the Eucalyptus 3.2 User Guide.

Launching the Stackato Image

Now its time to launch the Stackato image on Eucalyptus.  Since cloud-init has the enabled EC2 data source now, when the image is launched, the instance will grab ssh keys, and mount the ephemeral storage.  Also, additional configuration can be passed using the user-data file option.  More information regarding this can be found on Stackato’s documentation in reference to using cloud-init.  Key thing to remember here is that the minimum RAM requirement for the Stackato image is 2 gigs.  Make sure the VM type used for launching the Stackato image has at least 2 gigs of RAM or more.  In this example, the image ID is emi-DAB23A8A.  The ramdisk and kernel are registered as eri-9B453C09 and eki-ADF640B0.   The VM type c1.xlarge is used, which has 4 CPU,  4096 MB of RAM,  and    50 Gigs of disk space.

euca-run-instances -k admin emi-DAB23A8A -t c1.xlarge
--kernel eki-ADF640B0 --ramdisk eri-9B453C09

Use euca-describe-instances to check to see when the instance reaches a running state:

euca-describe-instances i-100444EF
RESERVATION r-CC69438B 345590850920 default
INSTANCE i-100444EF emi-DAB23A8A euca-192-168-55-104.wu-tang.euca-hasp.eucalyptus-systems.com
euca-10-106-101-17.wu-tang.internal running admin 0 c1.xlarge 2013-02-23T00:34:07.436Z enter-the-wu eki-ADF640B0
eri-9B453C09 monitoring-disabled 192.168.55.104 10.106.101.17 instance-store

The key thing for running a Stackato instance is setting up the correct DNS entries.  For more information regarding setting up DNS with regards to a Stackato instance, please read the Detail Configuration section on DNS in the Stackato online documentation.  For this example, instead of using an external DNS service using a tool like nsupdate, to configure the A record and CNAME records, we will use xip.io. xip.io is a magic domain name that provides wildcard DNS for any IP address.  Next, its time to configure the Stackato instance.

Configuration of the Stackato Instance

To configure the Stackato instance, do the following:

  1. SSH into the instance.

    ssh -i creds/admin.priv
    stackato@euca-192-168-55-104.wu-tang.euca-hasp.eucalyptus-systems.com
  2. Make note of the ip address associated with eth0 and the netmask using ifconfig.  Also note the gateway IP by using the route command.
  3. Run “kato op static_ip” to configure the static IP address for eth0.  Make sure and add 127.0.0.1 as the first entry as part of the nameservers, and add “containers.” as the first entry under the search domains.
  4. Run “kato rename public DNS name “, where public DNS name includes the public IP of the instance, using xip.io (e.g. 192.168.55.104.xip.io)
  5. Run “kato disable mdns”, then run “sudo reboot” to reboot the instance.
  6. Once the instance has come back up, ssh into the instance, and run the following command  “kato setup core api.public DNS name” where public DNS name is the same value used for the “kato rename” step (e.g.  192.168.55.104.xip.io).
  7. Next, edit /etc/resolv.conf and make sure that the value for the search option is “containers.”, and the first entry for the nameservers is 127.0.0.1.
  8. Finally, run “kato enable –all-but mdns”

Thats it!  Now go to the public DNS name that was used in your favorite browser.  For this example, 192.168.55.104.xip.io was used.  The following landing page should look similar to what you see here in the Stackato documentation regarding accessing the instance through the management console.

Setting Up Jenkins

After setting up the admin account, navigate to the “App Store” on the lefthand menu.  Once selected, navigate to find the Jenkins application:

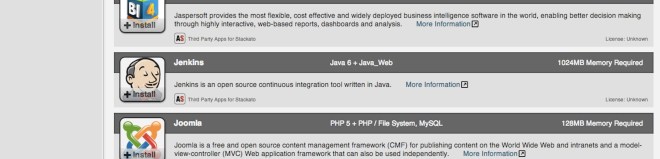

Jenkins Application

Jenkins Application



After selecting to install Jenkins, select “Yes” to install.  After the installation takes place,  select “Applications” in the left hand menu.  From there, select the Jenkins application, and select “Start” (its the green arrow to the right of the application window).   Once it has started, you will see the following:

Jenkins Running in Stackato

Jenkins Running in Stackato



Now Jenkins is ready to be used.

If anyone wants to test this out on Eucalyptus but doesn’t have access to their own Eucalyptus cloud, fear not, the Eucalyptus Community Cloud has the Stackato image available.  After applying to get access to the Community Cloud, follow the steps above.  The image for Stackato is as follows:

IMAGE emi-859B3D5C stackato_v2.6.6/stackato-cloudinit.manifest.xml 150820662310 available public x86_64 machine eki-6FBE3D2D eri-67463B77 instance-store

And as always, this image and steps can be used on AWS EC2 as well. :-)

Let me know if there are any questions.  Feedback is always welcome.  Enjoy!
